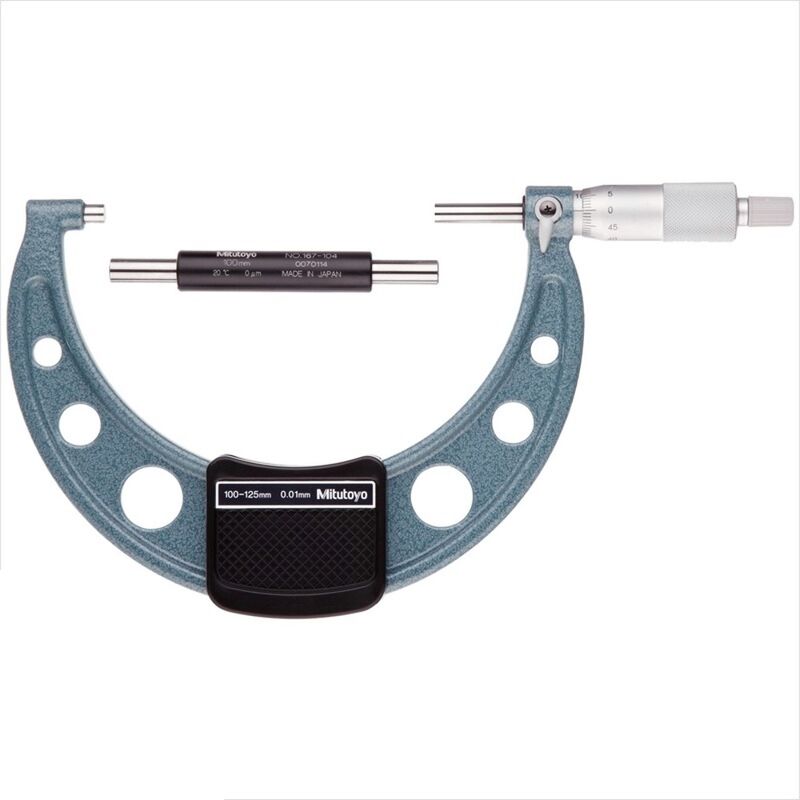

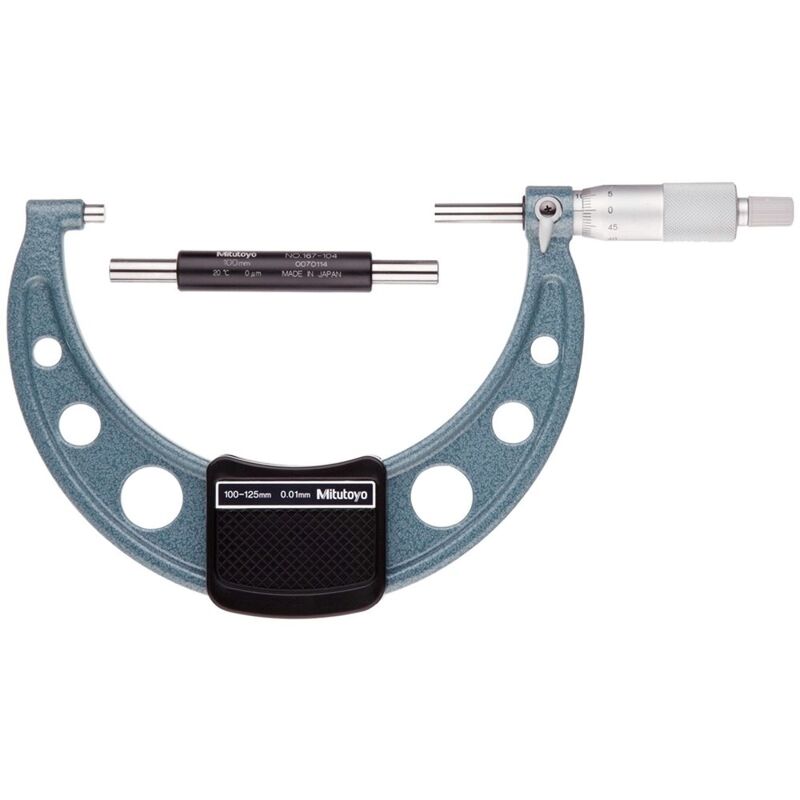

Mitutoyo Outside Micrometer
Metric (100mm - 125mm)
103-141-10

Mitutoyo Japan are the industry standard in precision measuring equipment.

• Baked Enamel finished frame.
• Carbide measuring faces.
• Ratchet Stop for constant measuring force.
• Equipped with Locking Clamp.

Range: 100 - 125mm
Graduation: 0.01mm
Accuracy: ± 0.003mm
Measuring Force: 5 - 10 N
Flatness: 0.6 µm
Weight: 700g

Comes with protective carrying case, calibration tool, instructions and inspection certification.

Mitutoyo Model No 103-141-10
