Mitutoyo Outside Micrometers
Metric (0mm - 300mm)
103-914-50 (12 Piece Set)

Mitutoyo Japan are the industry standard in precision measuring equipment.

• Baked Enamel finished frame.
• Carbide measuring faces.
• Ratchet Stop for constant measuring force.
• Equipped with Locking Clamp.
• In Protective Timber Case

Range: 0 - 300mm
Graduation: 0.01mm
Accuracy: ±0.002mm (0-75mm) ±0.003mm (75-150mm) ±0.004mm (150-225mm) ±0.005mm (225-300mm)
Measuring Force: 5 - 10 N
Flatness: 0.6 µm
Weight: 18,500g

Contents:
103-137 Outside Micrometer 0mm-25mm
103-138 Outside Micrometer 25mm-50mm
103-139-10 Outside Micrometer 50mm-75mm
103-140-10 Outside Micrometer 75mm-100mm
103-141-10 Outside Micrometer 100mm-125mm
103-142-10 Outside Micrometer 125mm-150mm
103-143-10 Outside Micrometer 150mm-175mm
103-144-10 Outside Micrometer 175mm-200mm
103-145-10 Outside Micrometer 200mm-225mm
103-146-10 Outside Micrometer 225mm-250mm
103-147-10 Outside Micrometer 250mm-275mm
103-148-10 Outside Micrometer 275mm-300mm
Calibration Standard x 11 (25mm / 50mm / 75mm / 100mm / 125mm / 150mm / 175mm / 200mm / 225mm / 250mm / 275mm)
Calibration Keys x 12

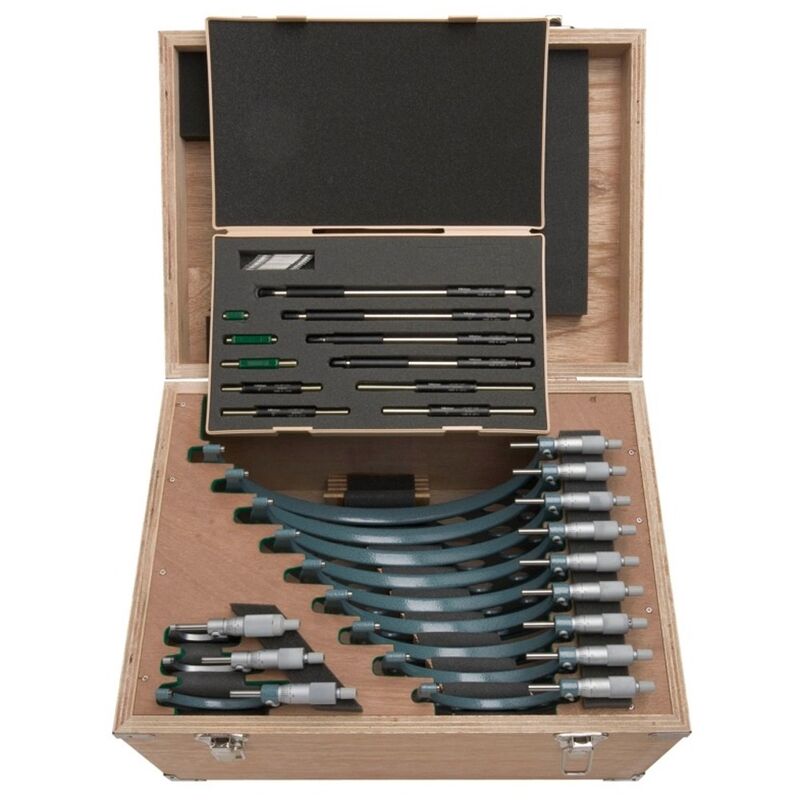

Comes with protective timber carrying case, calibration tools, instructions and inspection certification.

Mitutoyo Model No 103-914-50
