Mitutoyo Japan are the industry standard in precision measuring equipment.
• Intigrated dovetail on three sides.
• Outside bezel diameter of 40mm.
• Watertight bezel and crystal as well as the use of an o-ring prevents water or oil penetration.
• Stem and spindle are made of high strength quench hardened stainless steel.
• Carbide contact point.
• Jeweled crown gear bearing.
• Application of hard coating to surface of crystal makes the indicator highly scratch and chemical resistant.
• Universally adjustable stylus direction AND measurement direction.
Measuring Range: 0.8mm (0.8mm per revolution)
Graduation: 0.01mm
Accuracy: ±8µm
Measuring Force: 0.3N or less
Stylus Length: 6.5mm (24.0mm Tip to Pivot Point)
Stylus Contact Point: Carbide 1mmØ, Carbide 2mmØ, Carbide 3mmØ
Stylus Part No: 102824, 102825, 102826
Comes with 4mm Stem, 8mm Stem, Knurled Clamping Ring, Swivel Clamp, Holding Bar, Spanner, 1mm Stylus, 2mm Stylus (Qty 2), 3mm Stylus, instructions and inspection certification.

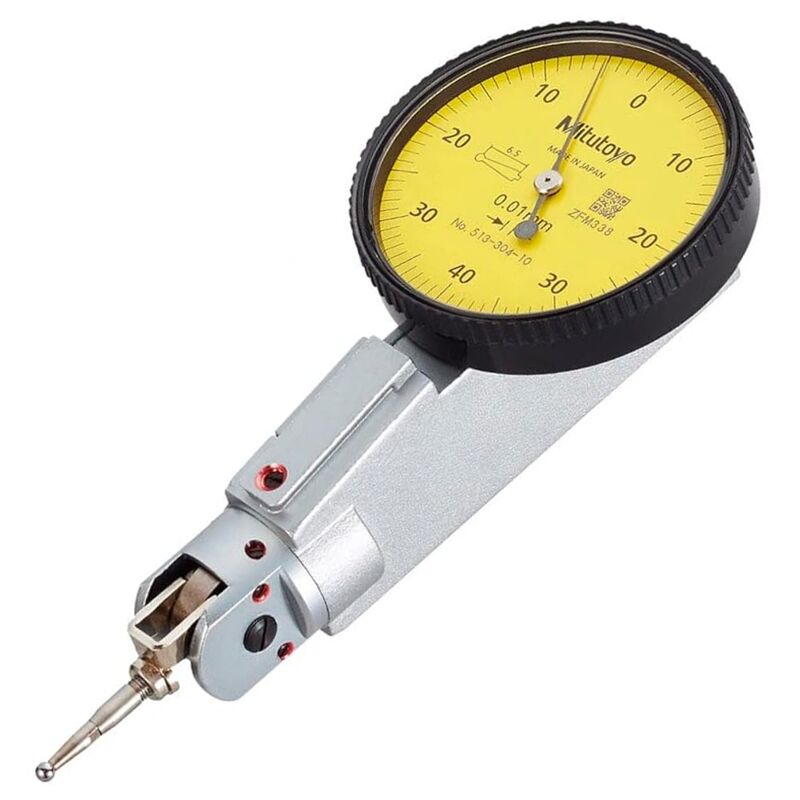

Mitutoyo Model No 513-304-10T
