Mitutoyo Japan are the industry standard in precision measuring equipment. Mitutoyo gauge blocks are recognised to be of the highest quality worldwide.
• Rectangular gauge blocks.
• Optimum flatness and surface finish.
• Excellent abrasion resistance.
• In protective wooden case.
Material: Steel
Grade: 0
Accuracy Standard: EN ISO 3650
Length Variation Tolerance: 0.10µm
Length Deviation At Any Point: 0.12µm (1mm to 10mm) 0.14µm (15mm to 25mm)
Certification: Inspection Certificate
Contents:

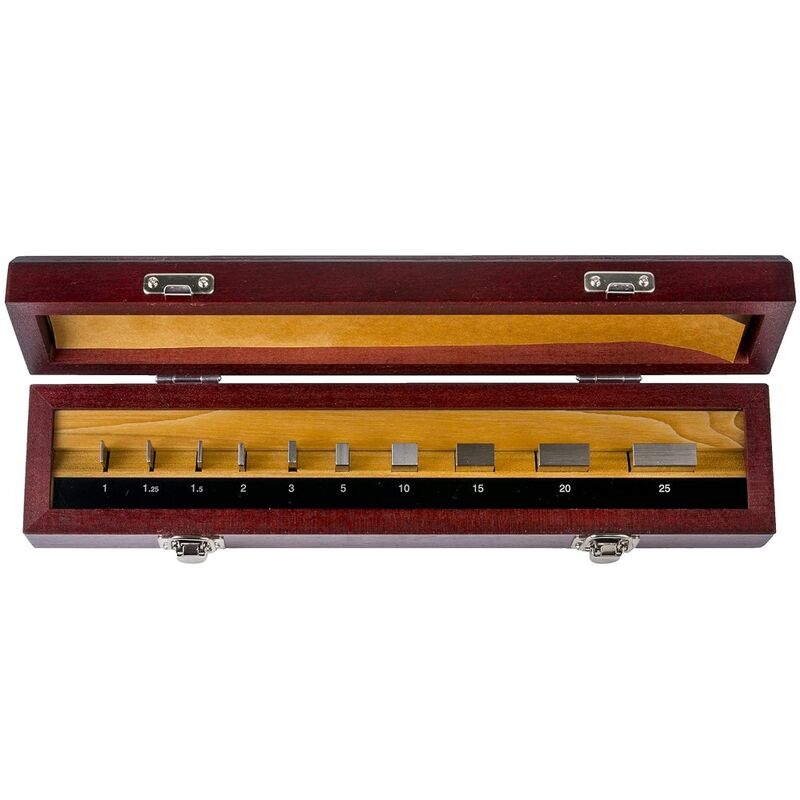

Rectangular Gauge Blocks 1mm, 1.25mm, 1.50mm, 2mm, 3mm, 5mm, 10mm, 15mm, 20mm, 25mm
Comes with protective wooden case, instructions and inspection certification.
Mitutoyo Model No 516-103-10
