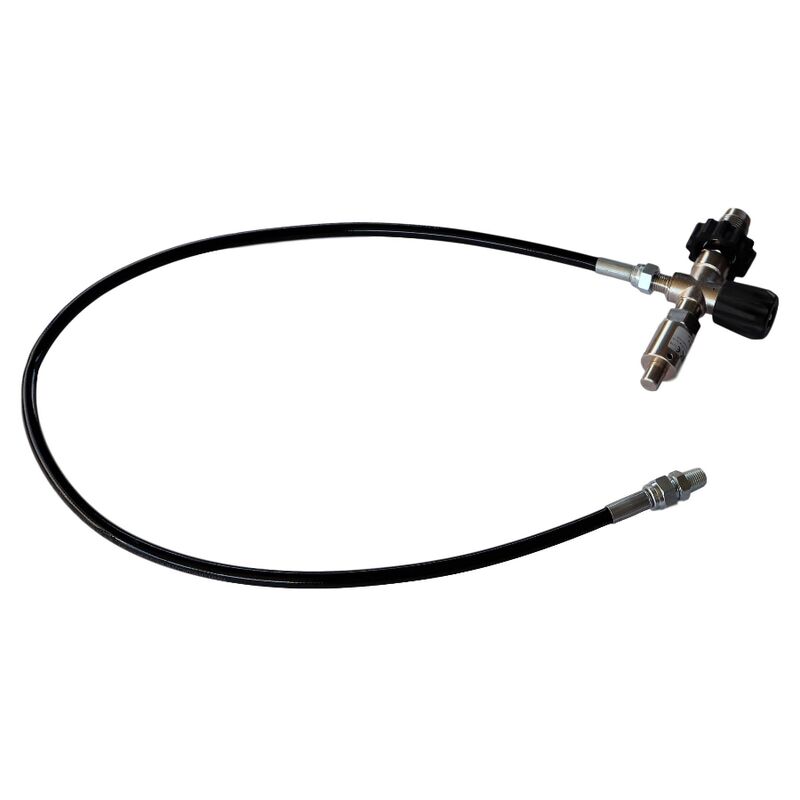

Nardi Atlantic Additional Filling Hose DIN 225 bar For 330 bar compressors

Nardi Atlantic Additional
Filling Hose (DIN 225 bar)
For 330 bar compressors

HP-A-FHLH
Price: $298.00
Available

The genuine Nardi Additional Fill Hose utilises the unused second connection point on Atlantic model compressors, providing a second filling hose complete with 225 bar filling valve, turning a 330 bar compressor into a dual pressure compressor with both 225 bar and 330 bar filling valves.

The valve opens, closes and discharges with a single operation, by turning a single knob.

Note: This filling valve allows 225 bar tanks to be filled using a 330 bar compressor. The built in safety relief valve will open when tanks reach 225 bar.

Set Pressure: 225 bar (3263 psi)
Max. Allowable Pressure: 250 bar (3625 psi)
Connection - Compressor: 1/4" BSPP
Connection - Tank: DIN
Hose Length: 1m

Conforms with UNI 144-2 2000
